12V Fm Car Stereo Radio Bluetooth 1 Din In Dash Wiring Diagram – Collection.
Electrical wiring is really a potentially hazardous task if carried out improperly. One need to never attempt functioning on electrical cabling without knowing the below tips and tricks followed by even the many experienced electrician.

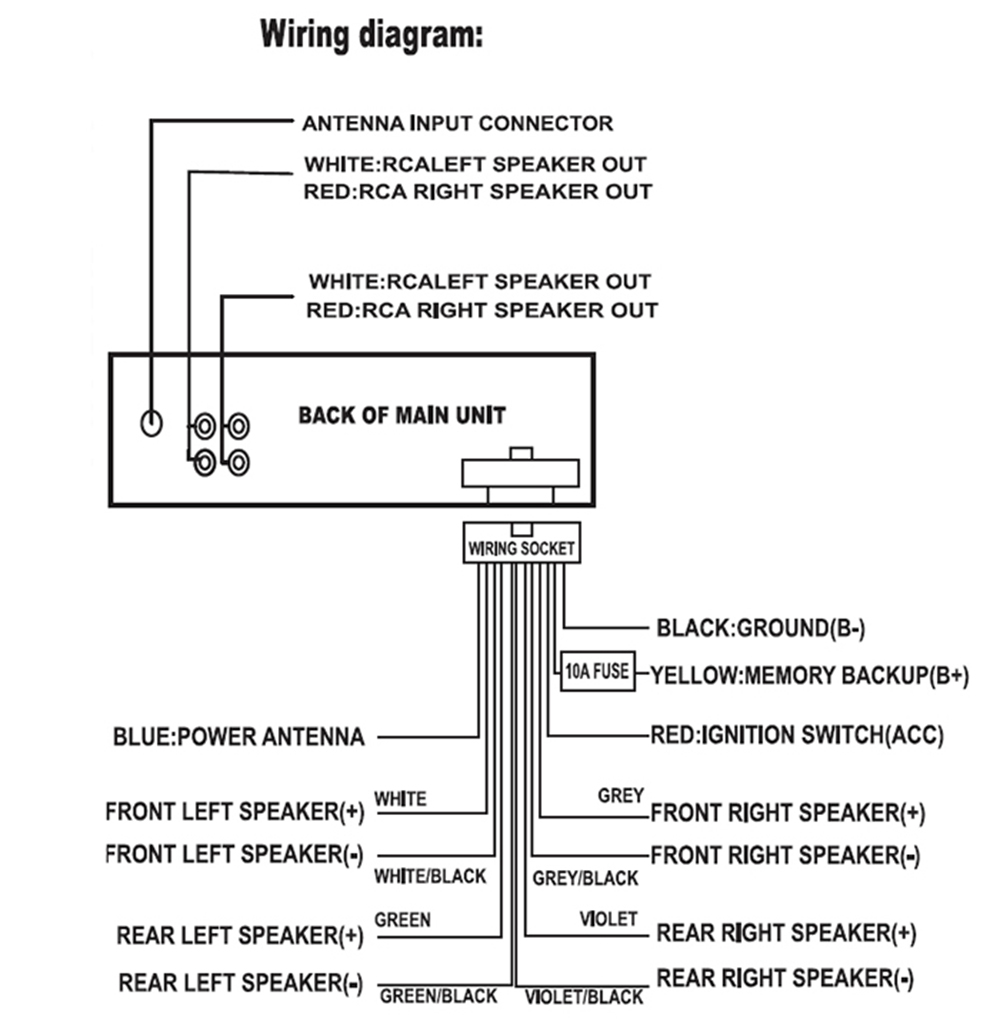

12V Fm Car Stereo Radio Bluetooth 1 Din In Dash Wiring Diagram
To properly read a wiring diagram, one has to know how the components within the method operate. For example , when a module is powered up and it sends out a signal of half the voltage in addition to the technician would not know this, he'd think he offers a problem, as this individual would expect a 12V signal. Next diagrams is reasonably simple, but applying it in the scope of how the device operates is the different matter. Our best advice is not only look in the diagram, nevertheless understand how the components operate when within use.
Before reading a new schematic, get familiar and understand each of the symbols. Read the particular schematic like a roadmap. I printing the schematic plus highlight the signal I’m diagnosing to be able to make sure Im staying on right path.
Best tricks and techniques in home cabling
For DIY electricians, there's a lot of jumbled up information of what you ought to or shouldn't do. Electricity is very dangerous and can easily lead to electrocution, so you need to call an emergency electrical contractor for sensitive cabling cases. However, you may work on minor electrical wiring in your home provided you follow safety measures. To make you better at wiring, here are some reliable tips and techniques you need to perfect. You will be in a far greater position to safeguard yourself and work better.
Have an RCD
An RCD (residual current device) is one of the main things to have in your circuits. It is positioned on socket outlets or fuse boxes to prevent electric shock in the situation of a DIY blunder. RCDs are devices that are widely-used to monitor the flow of current through a particular circuit, and they cut off the existing whenever it flows through an unintentional path. So if you accidentally touch a live line, the RCD would identify the unusual flow of the current and immediately switch off the circuit. This keeps both your family safe.
Use proper tools
Having the right tools at hand is another important aspect of electric work. For instance, avoid knives as opposed to stripshow when stripping your wires. Knives may weaken the wire by notching the copper inside.
Choose linesman pliers as opposed to the ordinary slip-joint giant pliers when intending to twist wires. The ordinary pliers would give you a loose connection that may cause trouble in future. Likewise, ensure you've obtained a tester to test the volts of the wire connections before and after working on them.
Watch your airport terminal contacts
Terminal cable connections would be the conclusion details of wires, where a connection with a circuit occurs. These are some of the most typical connections, particularly if you're dealing with receptacles and buttons. Terminal connections go through a lot of stress, and poor joints easily loosen up.
So here's the trick. When wrapping a wire around the terminal screw, do it in a clockwise direction. Of which way, the screw tightens the link as it goes in. Also ensure that all the wire that's twisted around the mess is stripped. Inside case there are a terminal slot, you need to be extra careful. Strip the wire perfect such that no insulation goes underneath the slot, and no bare wire is left. Any faults here could cause the wire to the touch the ground wire or box.
